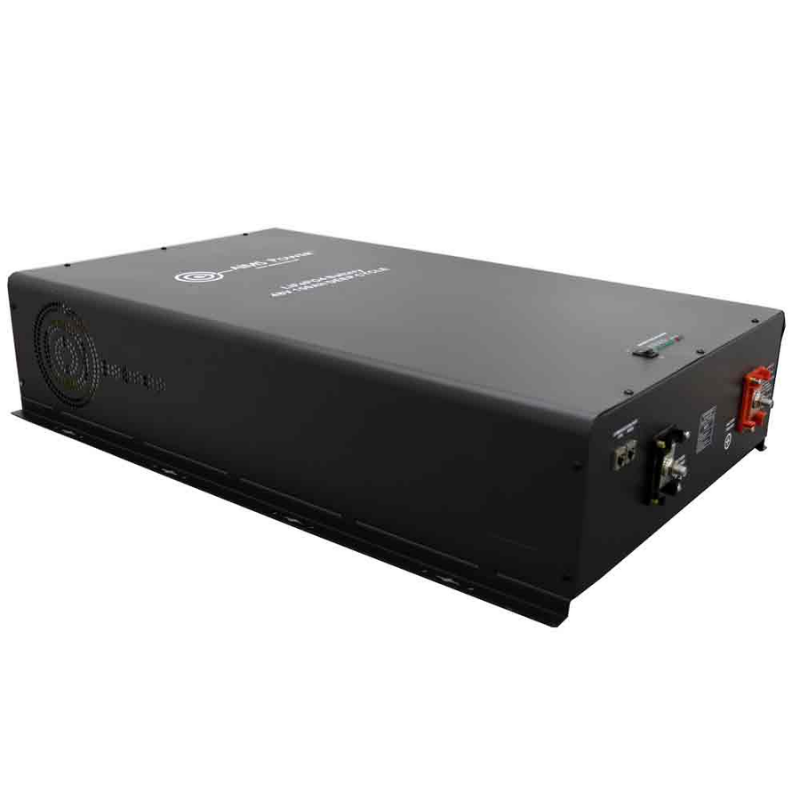

AIMS Power Lithium Battery 48V 150AMP LiFePO4 Industrial Grade

Save $300.00
Original Price $5,299.00
Current Price $4,999.00

Free Shipping US Wide
Easy 30 Day Returns
Best Price Guarantee
Expert Customer Service

why you should buy from outer provisions

Notify me when back in stock

NEW from AIMS Power! This  48 Volt 150 AMP lithium iron phosphate (LiFePO4) industrial deep cycle battery is packed with power. The battery delivers efficient power for battery systems requiring large amounts of power at 48 Volts. The AIMS Power 48V 150 amp has large amp capacity in one battery and eliminates the need for multiple batteries without losing amperage.

Compared to other battery technologies, this battery delivers large amounts of power, at half the weight and provides up to 8 times more battery cycles and no memory problems. Loaded with automatic safety features, such as a Battery Management System (BMS), which maintains individual cell integrity, low and high voltage protections, reverse polarity and temperature management. The battery also uses automatic cell balancing, requires almost no maintenance and includes RS485 and CAN monitoring.

Replaces multiple battery banks, eliminates multiple cables, full amp capacity and NO memory problems!

  • 8 times more cycles compared to other battery technologies
  • 3500 cycles at 80% DoD, 6000 cycles at 60% DoD
  • Short circuit protection
  • Automatic low voltage shutdown
  • Over charge protection
  • Over discharge protection
  • Mount in any orientation
  • Multiple batteries: 10 batteries in parallel maximum
  • Automatic cell balancing
  • High output current for inverters
  • Battery status LED located on the front of the battery displays SOC percentage RS485 & CAN ports
  • Power switch
  • Built in Battery Management System (BMS)
  • Reverse polarity protection (caution)
  • No venting or gassing
  • BMS temperature protection
  • 10 year manufacturer defect warranty prorated

Battery Management System:  The built in BMS is a central hub inside the battery that maintains constant voltage, current and temperature. The BMS allows for maximum charging capacity for faster charging and efficient discharging. It also communicates with the desktop monitoring software via the RS485 or CAN port.


  • 48Volt
  • Lithium Iron Phosphate – LiFePO4
  • 150 amps

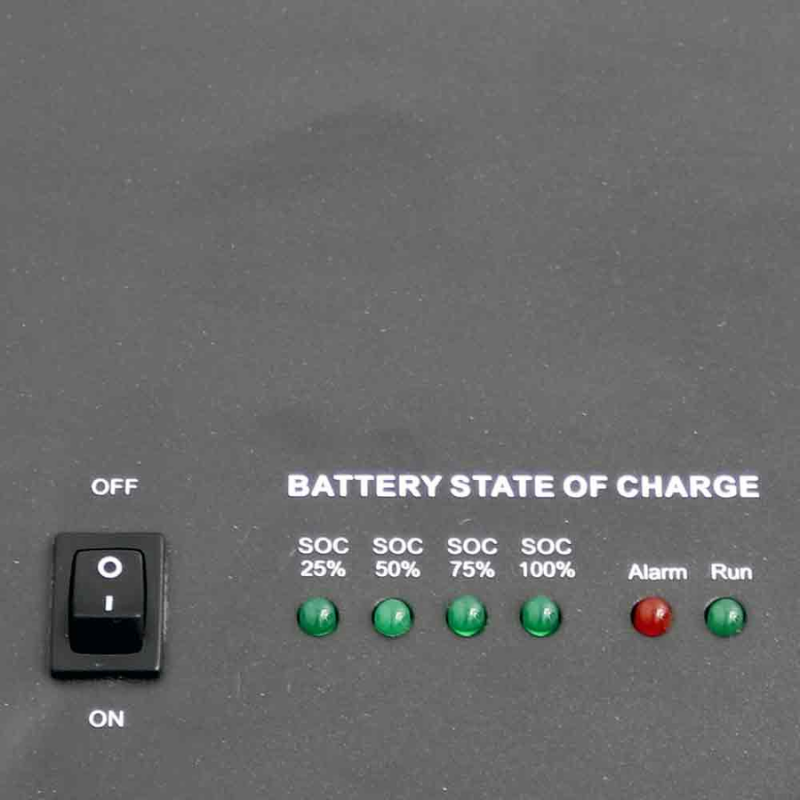

  • Battery status LED State of Charge display
  • On/off switch
  • 3/8 terminals
  • Terminal covers included
  • Cables included used for parallel connecting batteries – 41″ length

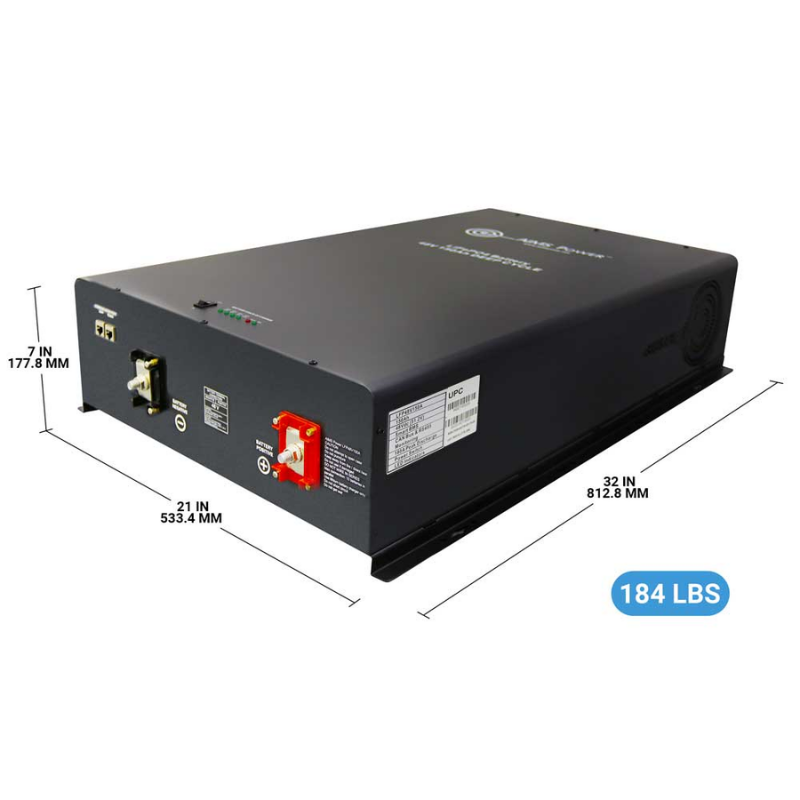

  • Dimensions: 32″L x 21″W x 7″H
  • Shipped dimensions: 38″L x 29″W x 21 1/2″H
  • Unit weight: 184 lb
  • Shipped weight: 242 lb

Battery Specification






Nominal Voltage



Battery Voltage



Battery Rated Capacity



Battery Rated Energy

7.68 kWh

7.68 kWh

Battery Cell Type

Prismatic Pouch

Battery Cell

3.2V 75AH

3.2V 75AH

Battery Cell Configuration



Rated Charge Voltage



Max Charge Voltage

28.4Vdc +/-.5V

56.8Vdc +/-.5V

Overcharge Protection

28.9Vdc +/-.5V

57.3Vdc +/-.5V

Rated Charge Current



Peak Charge Current



Over Charge
Protection Release


Reverse Polarity Protection


Battery Terminal Size

M10 / 7/16” / 12mm

Self Discharge Rate

5% per month

Charge Temp Range

0~45℃ / 32~113°F

Output Voltage Range



Rated Discharge Current



Peak Discharge Current



Over Discharge Protection BMS Disconnect

Charging, cut power to loads and restart

Discharge Temp Range

Humidity Storage

Operating Humidity

-20~65℃ / -4°~149°F

45-75 %

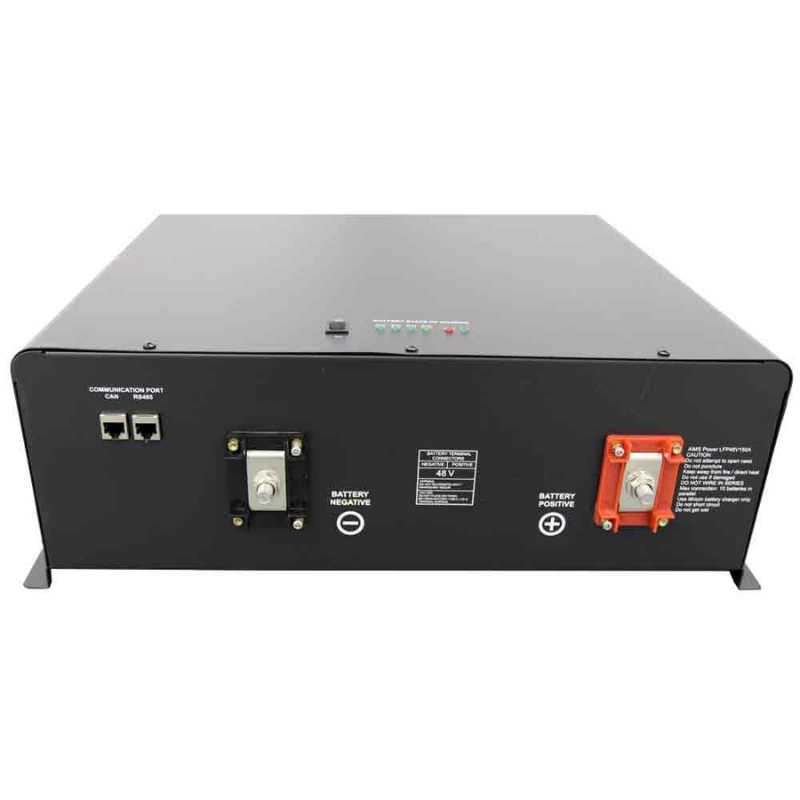

RS485 / CAN for PC monitor

Case Material
